Ultrasonic / Electromagnetic Wave

ComWAVE^TM

Ultrasonic Simulation Software

Outline

Why use ComWAVE ?

To Simulate NDT on your Personal Computer.

For estimating its accuracy, before the practical testing.

To Visualize the ultrasonic wave whether it reaches correctly or not.

ComWAVE can calculate the whole ultrasonic phenomena, such as reflection, refraction, diffraction and its interaction with cracks and structures of specimen.

To conduct your analysis more speedy with a reasonable resource cost.

For examples, studying your original NDT method for a specially proposed structure, etc.

How it works ?

A highly accurate ultrasonic simulator for NDE capable of over one billion elements

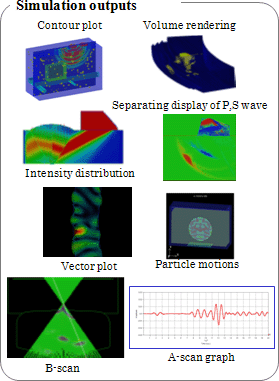

Modeling Probe templates Vertical probe, Angled probe, Phased array, etc. Basic modeler Combination of Boxes, Cylinders and Tetrahedrons etc. Advanced modeler CAD data Import, Modeling of intricate objects Pre-processing Data setting of ultrasonic sending/receiving parts. Data setting of absorbing boundaries. Automatic delay time setting for phased array. Data setting of B-scan condition Computation MPI (Massage-Passing Interface) compatible Available OS :Windows Vista / XP, and Linux Over one billion elements available. Bach job function provided Post-processing Visualization of Ultrasonic propagation volume rendering, contour map at any cross section, maximum distribution, particle motions, vector plot, etc. Graph plot of waveform at any point. Graphic display of A-scan and B-scan.
